The bathroom radiators manufactured by VOGEL&NOOT meet numerous internationally recognised quality standards and the manufacturing processes at all of the production sites have been ISO certified.
Dimensions and models:
![]() |
500, 600, 750, 900 | ||
---|---|---|---|
![]() |
714 | 1134 | 1764 |
Connections: 2 x external thread G 3/4
Test overpressure: 13 bar
Max. positive operating pressure: 10 bar
Max. operating temperature: 110 °C
Get an overview of the most important technical data. For further information, please download the featured pdf files.

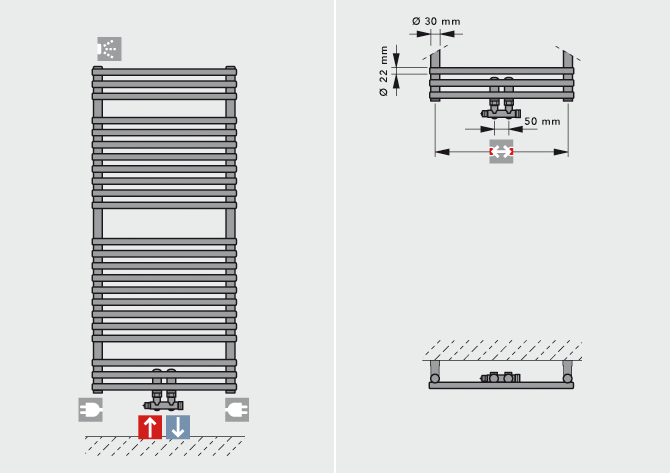

Flow
Return
Vent plug
Electric connection

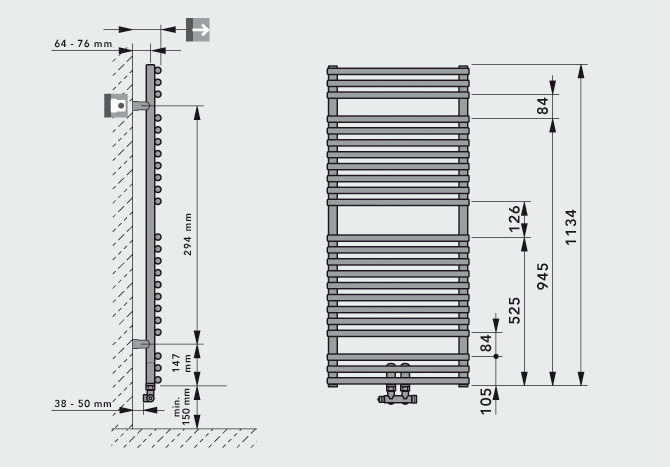

Boss spacing
Connections: 2 x external thread G 3/4
Test overpressure: 13 bar
Max. positive operating pressure: 10 bar
Max. operating temperature: 110 °C
Accessory: PTC electric heating element
DION-VM radiators fitted with an electric heating element can also be used at times when the regular heating system is switched off. It is absolutely necessary to take account of the power-ratings assigned to the electric heating elements.
Here you can download all relevant data in different file formats.
Get an overview of our wide range of accessories for our bathroom radiators.
The European Union Construction Products Regulation requires that building products, including the radiators and the convectors without an integrated heat source, must be CE-marked in accordance with relevant harmonized product standards EN 442 and the Declaration of Performance (DoP). The CE marking means that each product meets the manufacturing process requirements of the product according to the provisions of manufacture, testing and delivery. The regulation came into force on July 1st, 2013.
Rettig ICC products are CE-marked and the Declaration of Performance of Rettig ICC and its reference documents, Annexes D and Annexes M describing the detailed performance of the products, are available according to the Construction Products Regulation. See the current DoP of RICC attached and the linked document files.
“We have created various replacement scenarios in which a radiator replacement is carried out. With VOGEL&NOOT panel radiators, an average saving of approximately 15 % was recorded.”
DI Dr. Michael Graf is professor on the renowned technical college in Pinkafeld, Austria.
Compatible with all energy sources:
• Range of supply temperatures from between 90 ° and less than 40 °C
• Perfect for the combination with low-temperature heat sources (heat pump, solar energy …)
Enormous potential for cost reduction with new buildings & renovations:
• Approx. 15 % less energy costs with replacement radiators (as comp. with old element radiators)
• Thanks to high performance, only low system temperatures are required
Extremely fast control in the heating-up and cooling time
• Fast reaction time after sudden temperature changes (less energy)
• High efficiency due to short cooling & heating-up times
• Control is of very good quality
In intreaga lume, sunt luate masuri pentru economisirea energiei si conservarea resurselor planetei. VOGEL&NOOT sustine aceste eforturi cu radiatoare de inalta tehnologie si sisteme de incalzire prin pardoseala care asigura randament termic sporit si confort termic optim protejand totodata mediul inconjurator.
Throughout the world, efforts are being made to save energy and conserve our planet’s resources. VOGEL&NOOT is supporting these efforts with high-tech radiators and underfloor heating systems in order to permit efficient heat output in conditions of complete comfort.
