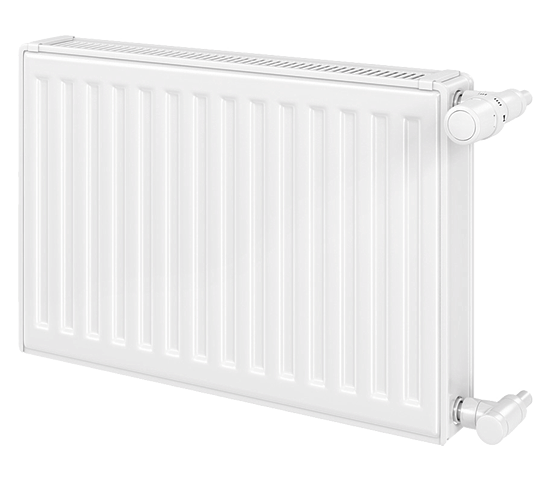

Replacement radiator

Replacement radiator

The boss spacing is compatible with that of the sectional radiators used previously. High performance, rapid room heating and even heat distribution.
Heat-Output-Calculator
Brochure E-Book "On the ECO-track"

Overview of models

Replacement radiators offer precisely the right solution when it comes to replacing outdated sectional radiators simply, quickly and with no mess. The boss spacings are compatible with those of the sectional radiators that have been used in the past.

The radiators manufactured by VOGEL&NOOT meet numerous internationally recognised quality standards and the manufacturing processes at all of the production sites have been ISO certified. Furthermore, the quality and performance data of VOGEL&NOOT panel radiators are constantly reviewed and confirmed by accredited European institutions.

Quality as a sign of maximum safety


Varying dimensions and different designs regarding the number of layers and convection sheets lead to a wide range of models, suitable for different requiremets.

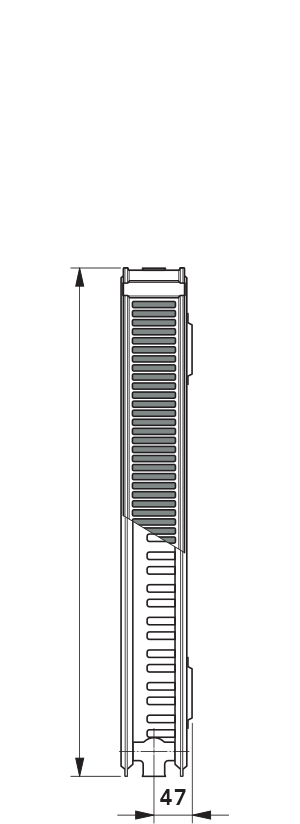

Type 21 K-S

Upgrade radiator TYPE 21 K-S Upgrade radiator TYPE 21 K-S
Upgrade radiator TYPE 21 K-S Upgrade radiator TYPE 21 K-S
Height Height 554
Lenght Length 600 up to 2000
Boss spacing Boss spacing 500

Steps: any overall length starting with 400 and 600 mm available in steps of 200 mm

Connections Connections: 4 x internal thread G 1/2 Maximal positive operating pressure Max. positive operating pressure: 10 bar
Test positive pressure Test positive pressure: 13 bar Maximal operating temperature Max. operating temperature: 110 °C

Type 22 K

Upgrade radiator TYPE 22 K Upgrade radiator TYPE 22 K
Upgrade radiator TYPE 22 K Upgrade radiator TYPE 22 K
Height Height 554 954
Lenght Length 600 up to 2000 400 up to 1600
Boss spacing Boss spacing 500 900

Steps: any overall length starting with 400 and 600 mm available in steps of 200 mm

Connections Connections: 4 x internal thread G 1/2 Maximal positive operating pressure Max. positive operating pressure: 10 bar
Test positive pressure Test positive pressure: 13 bar Maximal operating temperature Max. operating temperature: 110 °C

Type 33 K

Upgrade radiator TYPE 33 K Upgrade radiator TYPE 33 K
Upgrade radiator TYPE 33 K Upgrade radiator TYPE 33 K
Height Height 554
Width Length 600 up to 2000
Boss spacing Boss spacing 500

Steps: any overall length starting with 400 and 600 mm available in steps of 200 mm

Connections Connections: 4 x internal thread G 1/2 Maximal positive operating pressure Max. positive operating pressure: 10 bar
Test positive pressure Test positive pressure: 13 bar Maximal operating temperature Max. operating temperature: 110 °C

Technical information

Get an overview of the most important technical data. For further information, please download the featured pdf files.

Connection diagram (example)

Connection diagram

Connection modes - double-pipe system

Replacement radiator connection modes

Flow Flow Vent plug Vent plug
Return Return Drain plug Drain plug
Blank plug Blank plug

Upgrade adapter - Examples of using upgrade adapters

Examples of using upgrade adapters Examples of using upgrade adapters

Non-standard distances are not at all a problem!

The upgrade adapter has been developed for non-standard boss spacing. Any distance problems are solved very easily by the use of this adapter.

The upgrade adapter has been developed for non-standard boss spacing. Any distance problems are solved very easily by the use of this adapter.

Note: The upgrade adapter comes with a fit-up aid, made of cardboard.

Upgrade adapter

Upgrade adapter to replace radiators with a boss spacing of 1000 mm.

Measure Y: from 145 up to 158 mm continuously adjustable.
Artikel Nr.: AZ0MM100A0001000

Upgrade adapter

Upgrade adapter to replace radiators with a boss spacing of 200, 300, 500, 600 or 900 mm.

Measure X: From 45 mm up to 58 mm continuously adjustable.
Artikel Nr.: AZ0MM090A0001000

Note: By trimming the pipe by a maximum of 85 mm, the measure Y can be reduced (from 60 up to 73 mm).

Downloads

Here you can download all relevant data in different file formats.

PDF

DXF / DWG

SOFTWARE & TOOLS

Colours

Our UPGRADE RADIATORS are available in 71 different colours.

RAL COLOURS

  • RAL9016 Traffic White
  • RAL 9010 Pure White
  • RAL 9001 Cream White
  • RAL 250-2 Lemon Glow
  • RAL 1023 Traffic Yellow
  • RAL 1012 Lemon Yellow
  • RAL 1004 Golden Yellow
  • RAL 1027 Curry
  • RAL 6034 Pastel Turquoise
  • RAL 5014 Pastel TurquoisePigeon Blue
  • RAL 5009 Azure Blue
  • RAL 5015 Sky Blue
  • RAL 5017 Traffic Blue
  • RAL 5022 Night Blue
  • RAL 5002 Ultramarine Blue
  • RAL 5001 Green Blue
  • RAL 9005 Jet Black
  • RAL 7021 Black Grey
  • RAL 1033 Dahlia Yellow
  • RAL 2003 Pastel Orange
  • RAL 2004 Pure Orange
  • RAL 3000 Flame Red
  • RAL 3005 Wine Red
  • RAL 4002 Red Violet
  • RAL 4007 Purple Violet
  • RAL 4008 Signal Violet
  • RAL 290 70 20 Mauve Haze
  • RAL 290 40 45 Mystic Purple
  • RAL 4009 Pastel Violet
  • RAL 3015 Light Pink
  • RAL 3014 Antique Pink
  • RAL 6019 Pastel Green
  • RAL 120 80 60 Modern green
  • RAL 120 70 70 E-Green
  • RAL 150 60 60 Green Apple
  • RAL 6033 Mint Turquoise
  • RAL 6004 Blue Green
  • RAL 8017 Chocolate Brown
  • RAL 8019 Grey Brown
  • RAL 040 80 05 White Coffee
  • RAL 7035 Light Grey
  • RAL 7040 Window Grey
  • RAL 7001 Silver Grey
  • RAL 7037 Dusty Grey
  • RAL 7030 Stone Grey
  • RAL 7013 Brown Grey
  • RAL 7015 Slate Grey
  • RAL 7016 Anthracite Grey
  • RAL 7024 Graphite Grey
  • RAL 9006 White Aluminium
  • RAL 9007 Grey Aluminium

The colours shown here are not binding. Colour variations are possible due to print-technical reasons. Further colours available on request!

SANITARY COLOURS

  • S0075 Jasmine
  • S0091 Pergamon
  • S0094 Natura
  • S0087 Bahama Beige
  • S0084 Anemone
  • S0077 Magnolia
  • S0164 Banana
  • S0088 Manhatten

The colours shown here are not binding. Colour variations are possible due to print-technical reasons. Further colours available on request!

SPECIAL COLOURS

  • S0145 Creme White
  • S0142 White Textured
  • S0141 Black Textured
  • S0147 Anodic Brown
  • S0148 Anodic Black
  • S0149 Anodic Natura
  • S0201 Metal Alu
  • S0102 Metal Grey
  • S0146 Anodic Bronze
  • S0104 Metal Black
  • S0144 Brown Grey
  • S0143 Light Grey

The colours shown here are not binding. Colour variations are possible due to print-technical reasons. Further colours available on request!

Accessories

Get an overview of our wide range of accessories for our replacement panel radiators.

PDF

CE Marking and Declaration of Performance (DoP)

The European Union Construction Products Regulation requires that building products, including the radiators and the convectors without an integrated heat source, must be CE-marked in accordance with relevant harmonized product standards EN 442 and the Declaration of Performance (DoP). The CE marking means that each product meets the manufacturing process requirements of the product according to the provisions of manufacture, testing and delivery. The regulation came into force on July 1st, 2013.

Rettig ICC products are CE-marked and the Declaration of Performance of Rettig ICC and its reference documents, Annexes D and Annexes M describing the detailed performance of the products, are available according to the Construction Products Regulation.  See the current DoP of RICC attached and the linked document files.

PDF

VDI-Dataset

VDI-DATASET

Download our new VDI-Dataset "Radiators and Fanconvectors" from the BDH-Portal.

BDH-Portal

Heat-Output-Calculator

New Heat-Output-Calculator

Try our new Heat-Output-Calculator now!

Try it now

Spotlights

  • Added value with modern low-temperature radiators [Many benefits with panel radiators]

    • Compatibility Compatible with all energy sources:

      • Range of supply temperatures from between 90 ° and less than 40 °C

      • Perfect for the combination with low-temperature heat sources (heat pump, solar energy …)

      Savings Enormous potential for cost reduction with new buildings & renovations:

      • Approx. 15 % less energy costs with replacement radiators (as comp. with old element radiators)

      • Thanks to high performance, only low system temperatures are required

      Fast control Extremely fast control in the heating-up and cooling time

      • Fast reaction time after sudden temperature changes (less energy)

      • High efficiency due to short cooling & heating-up times • Control is of very good quality

  • Respectarea standardelor de protectia mediului [41% din emisiile de CO2 sunt determinate de cladiri]

    • In intreaga lume, sunt luate masuri pentru economisirea energiei si conservarea resurselor planetei. VOGEL&NOOT sustine aceste eforturi cu radiatoare de inalta tehnologie si sisteme de incalzire prin pardoseala care asigura randament termic sporit si confort termic optim protejand totodata mediul inconjurator.

  • Meeting the increased environmental awareness [41% of the CO2 emissions are caused by buildings]

    • Throughout the world, efforts are being made to save energy and conserve our planet’s resources. VOGEL&NOOT is supporting these efforts with high-tech radiators and underfloor heating systems in order to permit efficient heat output in conditions of complete comfort.
