High performance, rapid room heating and even heat distribution.

Decisive advantages with the T6.

Heat-Output-Calculator
Brochure Accessories

The T6: revolution in radiators

Thanks to innovative centre-connection technology and optimum energy efficiency, the T6 sets the standard for room heating, comfort and ease of use - advantages that will win over any customer!

Connection advantage

Diagonal or in-line connection via a standardised connection position.

T6 connection advantage

Selection advantage

Even if the pipework is laid in advance, the choice of radiator can be changed at any time.

T6 selection advantage

Positioning advantage

Flexible thermostat position as desired, thanks to patented pipe guides.

T6 positioning advantage

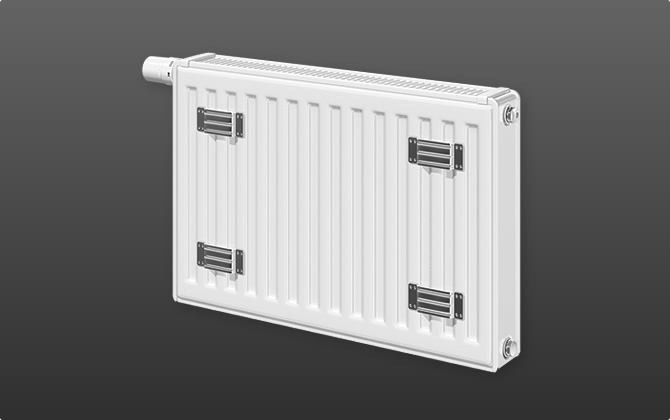

Installation advantage

Cost-effective, attractive and safe installation options without limitations.

T6 installation advantage

Distance advantage

Flexible choice of models with a standardised distance between the connection and the wall.

T6 distance advantage

Assembly advantage

The pipework can be laid in advance without the radiator to allow undisturbed progress of work.

T6 assembly advantage

Overview of models

The T6 technology is based on the radiator’s axis of symmetry, thereby creating limitless flexibility. T6 centre-connection radiators are perfectly symmetrical. They are the ideal combination of design and unique technology. Thanks to the patented technology and the special geometry of the convection plates, the T6 provides extremely high heating power. Consequently, it is able to heat up rooms particularly rapidly and guarantees the optimum level of thermal comfort.

Quality Marks

Varying dimensions and different designs regarding the number of layers and convection sheets lead to a wide range of models, suitable for different requirements.

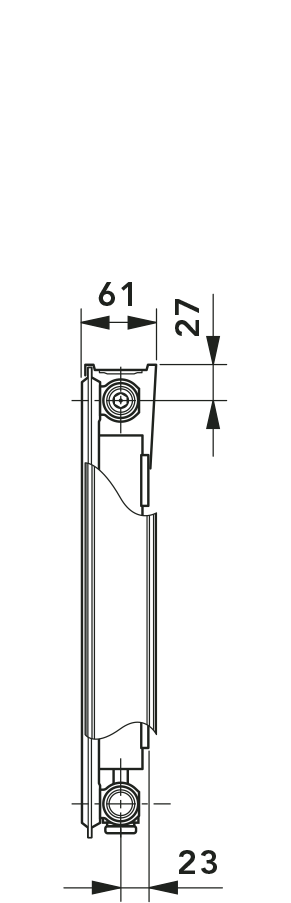

Type 11 VM

T6 TYPE 11 VM T6 TYPE 11 VM



single-layer with one convection sheet
Height Height 300 400 500 600 900
Width Length up to 2400 up to 2600 up to 2000
Depth Depth 61

Steps: all overall length starting with 400 mm available in steps of 200 mm, additionally 520, 720, 920, 1120 and 1320 mm

Connections Connections: 4 x internal thread G 1/2 and 2 x external thread G 3/4 bottom centre

Test positive pressure Test positive pressure: 13 bar

Maximal positive operating pressure Max. positive operating pressure: 10 bar

Maximal operating temperature Max. operating temperature: 110 °C

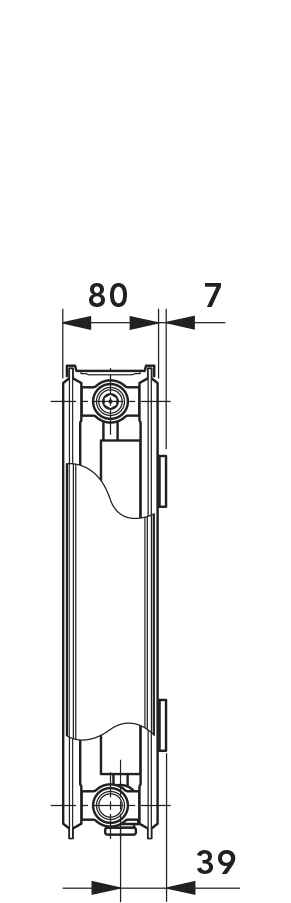

Type 21 VM-S



T6 TYPE 21 VM-ST6 TYPE 21 VM-S

double-layer with one convection sheet
Height Height 300 400 500 600 900
Width Length up to 2400 up to 3000 up to 2000
Depth Depth 80


Steps: all overall length starting with 400 mm available in steps of 200 mm, additionally 520, 720, 920, 1120 and 1320 mm

Connections  Connections: 4 x internal thread G 1/2 and 2 x external thread G 3/4 bottom centre

Test positive pressure  Test positive pressure: 13 bar

Maximal positive operating pressure  Max. positive operating pressure: 10 bar

Maximal operating temperature  Max. operating temperature: 110 °C



Type 22 VM

 T6 TYPE 22 VMT6 TYPE 22 VM

double-layer with two convection sheets
Height Height 300 400 500 600 900
Width Length up to 3000
up to 2000
Depth Depth 105


Steps: all overall length starting with 400 mm available in steps of 200 mm, additionally 520, 720, 920, 1120 and 1320 mm

Connections  Connections: 4 x internal thread G 1/2 and 2 x external thread G 3/4 bottom centre

Test positive pressure  Test positive pressure: 13 bar

Maximal positive operating pressure  Max. positive operating pressure: 10 bar

Maximal operating temperature  Max. operating temperature: 110 °C



Type 33 VM

T6 TYPE 33 VMT6 TYPE 33 VM

three-layers with three convection sheets
Height Height 300 400 500 600 900
Width Length up to 3000  up to 2200 up to 1800
Depth Depth 166



Steps: all overall length starting with 400 mm available in steps of 200 mm, additionally 520, 720, 920, 1120 and 1320 mm


Connections  Connections: 4 x internal thread G 1/2 and 2 x external thread G 3/4 bottom centre

Test positive pressure  Test positive pressure: 13 bar

Maximal positive operating pressure  Max. positive operating pressure: 10 bar

Maximal operating temperature  Max. operating temperature: 110 °C

Technical information

The T6-CENTRALLY CONNECTED RADIATOR is - with its welded in set of T-shaped valves - suitable for double-pipe installations as well as single-pipeinstallations, using a single-pipe manifold. Additionally to the central connection from the bottom, the sophisticated design makes possible other connections used at compact radiators, such as the single-sided and two-sided connection.

Radiators are delivered ready for double-pipe installation and with a factory-adjusted kv-setting, appropriate to the radiator output.

For district heating installations with a big difference between water supply and return temperature, a valve unit that allows a precise and stepless adjustment is available on request.

Connection modes - double-pipe system

A) Single-sided connection
B) Connection both sides
C) Connection on top (Warning: Lower performance)

T6 connection modes

Flow Flow Vent plug Vent plug
Return Return Drain plug Drain plug
Blank plug Blank plug

Caution:
When using the T6-CENTRALLY CONNECTED RADIATOR as a compact radiator, the 3/4“ screwing caps made of plastic have to be replaced by nickel-plated brass caps (accessory). Available under the item number: AZ0PL000C0002000. Additionally the plastic part of the special vent plug has to be removed.

kv-value chart

kv-value chart

Of course it is also possible to change the pre-adjusted valve setting when the equipment is operating at pressure.

Double-pipe operation - Adjustment tips for built-in valve



T6 double-pipe adjustment tips Setting instructions:
VOGEL&NOOT valve radiators are factory-fitted for double-pipe installations. Each individual radiator is fitted with a pre-adjusted valve insert, appropriate to the radiator output. The preset kv-value is also marked in colour on the front surface.

Please note:
Should customised adjustments be required, the pre-set kv-values can be altered as needed. Swapping the right-hand side built-in valve to the left-hand side is no problem at all at any time. Radiator are delivered with protective caps. After removing the protective cap (pos. A) the following thermostat heads can be fitted directly to the builtin valve (pos. B): “RA 2000”, “RAW” by Danfoss, “VK” by Heimeier, “D” by Herz, “thera DA” by MNG and “UNI XD” by Oventrop.

Single-pipe operation - Factory-adjusted built-in valve

T6 single-pipe built-in valve

1 - water supply element
2 - return element
3 - union nut
4 - cover for throttle screw
5 - ball valve 6 - external thread 3/4''

In single-pipe operation, setting the built-in valve on N.

The radiator will be delivered with a protective cap. After removing the protective cap (item A) the following thermostat heads can be installed directly onto the built-in valve (item B): „RA 2000“ and „RAW“ by Danfoss, „VK“ by Heimeier, „theraDA“ by MNG, as well as „UNI XD“ by Oventrop.

Caution: During the installation take care that the return element (2) has been installed at the water return, and the supply element (1) at the water supply.

Changing the built-in valve from the right- to the left-hand side can easily be done at any time.

Downloads

Here you can download all relevant data in different file formats.

PDF

DXF / DWG

SOFTWARE & TOOLS

Colours

The T6-centrally connected panel radiator is available in 71 different colours.

RAL COLOURS

  • RAL9016 Traffic White
  • RAL 9010 Pure White
  • RAL 9001 Cream White
  • RAL 250-2 Lemon Glow
  • RAL 1023 Traffic Yellow
  • RAL 1012 Lemon Yellow
  • RAL 1004 Golden Yellow
  • RAL 1027 Curry
  • RAL 6034 Pastel Turquoise
  • RAL 5014 Pastel TurquoisePigeon Blue
  • RAL 5009 Azure Blue
  • RAL 5015 Sky Blue
  • RAL 5017 Traffic Blue
  • RAL 5022 Night Blue
  • RAL 5002 Ultramarine Blue
  • RAL 5001 Green Blue
  • RAL 9005 Jet Black
  • RAL 7021 Black Grey
  • RAL 1033 Dahlia Yellow
  • RAL 2003 Pastel Orange
  • RAL 2004 Pure Orange
  • RAL 3000 Flame Red
  • RAL 3005 Wine Red
  • RAL 4002 Red Violet
  • RAL 4007 Purple Violet
  • RAL 4008 Signal Violet
  • RAL 290 70 20 Mauve Haze
  • RAL 290 40 45 Mystic Purple
  • RAL 4009 Pastel Violet
  • RAL 3015 Light Pink
  • RAL 3014 Antique Pink
  • RAL 6019 Pastel Green
  • RAL 120 80 60 Modern green
  • RAL 120 70 70 E-Green
  • RAL 150 60 60 Green Apple
  • RAL 6033 Mint Turquoise
  • RAL 6004 Blue Green
  • RAL 8017 Chocolate Brown
  • RAL 8019 Grey Brown
  • RAL 040 80 05 White Coffee
  • RAL 7035 Light Grey
  • RAL 7040 Window Grey
  • RAL 7001 Silver Grey
  • RAL 7037 Dusty Grey
  • RAL 7030 Stone Grey
  • RAL 7013 Brown Grey
  • RAL 7015 Slate Grey
  • RAL 7016 Anthracite Grey
  • RAL 7024 Graphite Grey
  • RAL 9006 White Aluminium
  • RAL 9007 Grey Aluminium

The colours shown here are not binding. Colour variations are possible due to print-technical reasons. Further colours available on request!

SANITARY COLOURS

  • S0075 Jasmine
  • S0091 Pergamon
  • S0094 Natura
  • S0087 Bahama Beige
  • S0084 Anemone
  • S0077 Magnolia
  • S0164 Banana
  • S0088 Manhatten

The colours shown here are not binding. Colour variations are possible due to print-technical reasons. Further colours available on request!

SPECIAL COLOURS

  • S0145 Creme White
  • S0142 White Textured
  • S0141 Black Textured
  • S0147 Anodic Brown
  • S0148 Anodic Black
  • S0149 Anodic Natura
  • S0201 Metal Alu
  • S0102 Metal Grey
  • S0146 Anodic Bronze
  • S0104 Metal Black
  • S0144 Brown Grey
  • S0143 Light Grey

The colours shown here are not binding. Colour variations are possible due to print-technical reasons. Further colours available on request!

CE Marking and Declaration of Performance (DoP)

The European Union Construction Products Regulation requires that building products, including the radiators and the convectors without an integrated heat source, must be CE-marked in accordance with relevant harmonized product standards EN 442 and the Declaration of Performance (DoP). The CE marking means that each product meets the manufacturing process requirements of the product according to the provisions of manufacture, testing and delivery. The regulation came into force on July 1st, 2013.

Rettig ICC products are CE-marked and the Declaration of Performance of Rettig ICC and its reference documents, Annexes D and Annexes M describing the detailed performance of the products, are available according to the Construction Products Regulation.  See the current DoP of RICC attached and the linked document files.

PDF

VDI-Dataset

VDI-DATASET

Download our new VDI-Dataset "Radiators and Fanconvectors" from the BDH-Portal.

BDH-Portal

Heat-Output-Calculator

New Heat-Output-Calculator

Try our new Heat-Output-Calculator now!

Try it now

Spotlights

  • Added value with modern low-temperature radiators [Many benefits with panel radiators]

    • Compatibility Compatible with all energy sources:

      • Range of supply temperatures from between 90 ° and less than 40 °C

      • Perfect for the combination with low-temperature heat sources (heat pump, solar energy …)

      Savings Enormous potential for cost reduction with new buildings & renovations:

      • Approx. 15 % less energy costs with replacement radiators (as comp. with old element radiators)

      • Thanks to high performance, only low system temperatures are required

      Fast control Extremely fast control in the heating-up and cooling time

      • Fast reaction time after sudden temperature changes (less energy)

      • High efficiency due to short cooling & heating-up times • Control is of very good quality

  • Respectarea standardelor de protectia mediului [41% din emisiile de CO2 sunt determinate de cladiri]

    • In intreaga lume, sunt luate masuri pentru economisirea energiei si conservarea resurselor planetei. VOGEL&NOOT sustine aceste eforturi cu radiatoare de inalta tehnologie si sisteme de incalzire prin pardoseala care asigura randament termic sporit si confort termic optim protejand totodata mediul inconjurator.

  • Meeting the increased environmental awareness [41% of the CO2 emissions are caused by buildings]

    • Throughout the world, efforts are being made to save energy and conserve our planet’s resources. VOGEL&NOOT is supporting these efforts with high-tech radiators and underfloor heating systems in order to permit efficient heat output in conditions of complete comfort.
