Overview of Models



The electric radiator RIO PLAN eLINE is available with different dimensions.

  • Type 11; Height 300 mm

     Height Height: 300
     Length Length: 407 814
     Depth Depth:* 109
     Nominal output Nominal output:** 250 W 500 W
     Height Height: 300
     Length Length: 1119 1525
     Depth Depth:* 109
     Nominal output Nominal output:** 750 W 1000 W

    Data in mm
    * incl. wall clearance
    ** at 60°C

  • Type 11; Height 500 mm

     Height Height: 500
     Length Length: 560 814
     Depth Depth:* 109
     Nominal output Nominal output:** 500 W 750 W
     Height Height: 500
     Length Length: 1068 1322
     Depth Depth:* 109
     Nominal output Nominal output:** 1000 W 1250 W

    Data in mm
    * incl. wall clearance
    ** at 60°C

  • Type 21; Height 300 mm

     Height Height: 300
     Length Length: 509 814
     Depth Depth:* 123
     Nominal output Nominal output:** 500 W 750 W
     Height Height: 300
     Length Length: 1017 1322
     Depth Depth:* 123
     Nominal output Nominal output:** 1000 W 1250 W
     Height Height: 300
     Length Length: 1627 2033
     Depth Depth:* 123
    Nominal output Nominal output:** 1500 W 2000 W

    Data in mm
    * incl. wall clearance
    ** at 60°C

  • Typ 21; Height 500 mm

     Height Height: 500
     Length Length: 407 509
     Depth Depth:* 123
     Nominal output Nominal output:** 500 W 750 W
     Height Height: 500
     Length Length: 661 814
     Depth Depth:* 123
     Nominal output Nominal output:** 1000 W 1250 W
     Height Height: 500
     Length Length: 966 1271
     Depth Depth:* 123
    Nominal output Nominal output:** 1500 W 2000 W

    Data in mm
    * incl. wall clearance
    ** at 60°C

The VOGEL&NOOT electric heating meets the requirements for the environmentally sound design of individual room heating units. This electric radiator is also ÖVE-tested.

Technical Information

The electric radiators of the RIO PLAN eLINE range are elegant radiators with an absolutely plane front, lateral and decorative covering.

Design: Types 11 and 21
Filling: contains an environmentally sustainable vegetable oil
Coating: RAL 9016 traffic white as powder stove enamelling

Electric connection: Wired ready for connection for 230V grid voltage, with 5-pole plug for wall sockets, cable length 1,0m (radiator with design length 400-800mm), 1,4m (radiator with design length 950-2000mm), protection class I, protection type IP 21.

Rio PLAN e-Anschluss

Basic serial package:
• Installation instructions
• Readily mounted with lateral and decorative covering
• Integrated, programmable digital control with LCD display
• ON/OFF switch, power cable with 5-pole plug
• Wall fixing with lift-out protection

Important: This radiator must be connected by a qualified electrician!

Type 11, dimensions at a nominal height of 300 mm

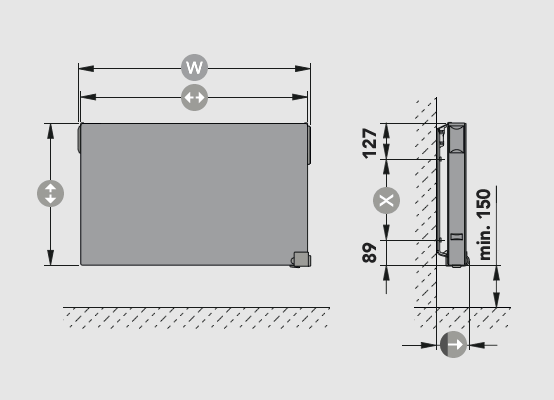

Rio PLAN eLINE type 11 - dimensions

Height 300
Length 400 800 1100 1500
Depth 82
w-dimension 407 814 1119 1525
x-dimension 84

Data in mm

Type 11, dimensions at a nominal height of 500 mm

Rio PLAN eLINE - type 11 - dimensions

Height 500
Length 550 800 1050 1300
Depth 82
w-dimension 560 814 1068 1322
x-dimension 284

Data in mm

Type 21; Dimensions at a nominal height of 300 mm

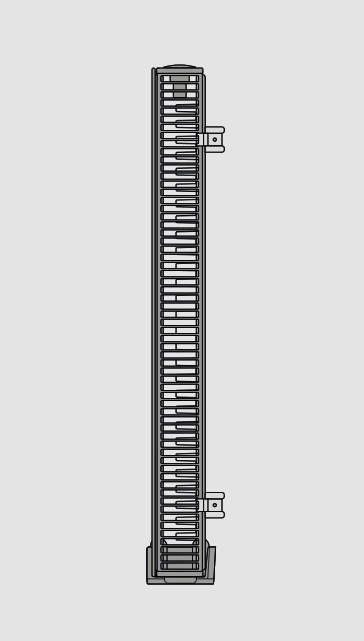

Rio PLAN eLINE - type 21 - dimensions

Height 300
Length 500 800 1000 1300 1600 2000
Depth 105
w-dimensions 509 814 1017 1322 1627 2033
x-dimensions 127

Data in mm

Type 21; Dimensions at a nominal height of 500 mm

Rio PLAN eLINE - type 21 - dimensions

Height 500
Length 400 500 6500 800 9500 1250
Depth 105
w-dimensions 407 509 661 814 966 1271
x-dimensions 327

Data in mm

The VOGEL&NOOT electric heating meets the requirements for the environmentally sound design of individual room heating units. This electric radiator is also ÖVE-tested.

Accessories

Protective cover against spray water for RIO eLINE

Protective cover against spray water for RIO eLINE

Fits all models of the RIO eLINE line. Increases the protection type of the radiator from IP X1 or IP X2 to IP 44.
