The T6: revolution in radiators

Thanks to innovative centre-connection technology and optimum energy efficiency, the T6 sets the standard for room heating, comfort and ease of use - advantages that will win over any customer!

Connection advantage

Diagonal or in-line connection via a standardised connection position.

T6 connection advantage

Selection advantage

Even if the pipework is laid in advance, the choice of radiator can be changed at any time.

T6 selection advantage

Positioning advantage

Flexible thermostat position as desired, thanks to patented pipe guides.

T6 positioning advantage

Installation advantage

Cost-effective, attractive and safe installation options without limitations.

T6 installation advantage

Distance advantage

Flexible choice of models with a standardised distance between the connection and the wall.

T6 distance advantage

Assembly advantage

The pipework can be laid in advance without the radiator to allow undisturbed progress of work.

T6 assembly instructions

Overview of models

The T6 technology is based on the radiator’s axis of symmetry, thereby creating limitless flexibility. T6 centre-connection radiators are perfectly symmetrical. They are the ideal combination of design and unique technology. Thanks to the patented technology and the special geometry of the convection plates, the T6 provides extremely high heating power. Consequently, it is able to heat up rooms particularly rapidly and guarantees the optimum level of thermal comfort.

Quality as a sign of maximum safey

Varying dimensions and different designs regarding the number of layers and convection sheets lead to a wide range of models, suitable for different requiremets.

Type 11 PM

 T6-plan TYPE 11 PMT6-plan TYPE 11 PM

single-layer with one convection sheet
Height Height 300 400 500 600 900
Lenght Length up to 2400 up to 2600 up to 2000
 Depth 63

Steps: all overall length starting with 400 mm available in steps of 200 mm, additionally 520, 720, 920, 1120 and 1320 mm

Connections Connections: 4 x internal thread G 1/2 and 2 x external thread G 3/4 bottom centre Maximal positive operating pressure Max. positive operating pressure: 10 bar
Test positive pressure Test positive pressure: 13 bar Maximal operating temperature Max. operating temperature: 110 °C

Type 21 PM-S

T6-plan TYPE 21 PM-ST6-plan TYPE 21 PM-S

double-layer with one convection sheet
Height Height 300 400 500 600 900
Lenght Length up to 2400 up to 3000 up to 2000
 Depth 82

Steps: all overall length starting with 400 mm available in steps of 200 mm, additionally 520, 720, 920, 1120 and 1320 mm

Connections Connections: 4 x internal thread G 1/2 and 2 x external thread G 3/4 bottom centre Maximal positive operating pressure Max. positive operating pressure: 10 bar
Test positive pressure Test positive pressure: 13 bar Maximal operating temperature Max. operating temperature: 110 °C

Type 22 PM

T6-plan TYPE 22 PMT6-plan TYPE 22 PM

double-layer with two convection sheets
Height Height 300 400 500 600 900
Lenght Length up to 3000
up to 2000
Depth 107

Steps: all overall length starting with 400 mm available in steps of 200 mm, additionally 520, 720, 920, 1120 and 1320 mm

Connections Connections: 4 x internal thread G 1/2 and 2 x external thread G 3/4 bottom centre Maximal positive operating pressure Max. positive operating pressure: 10 bar
Test positive pressure Test positive pressure: 13 bar Maximal operating temperature Max. operating temperature: 110 °C

Type 33 PM

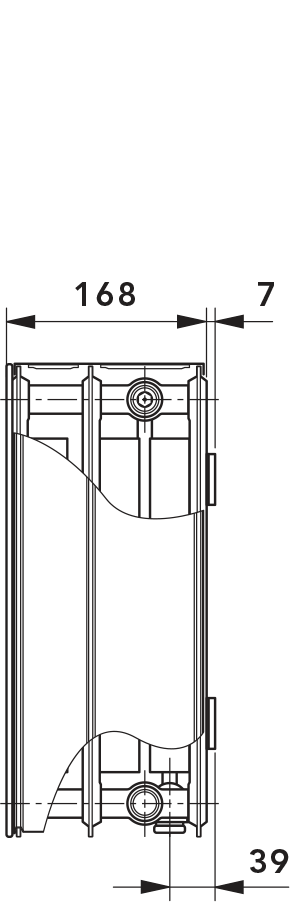

T6-plan TYPE 33 PMT6-plan TYPE 33 PM

three-layers with three convection sheets
Height Height 300 400 500 600 900
Lenght Length up to 3000 up to 2200 up to 1800
Depth 168

Steps: all overall length starting with 400 mm available in steps of 200 mm, additionally 520, 720, 920, 1120 and 1320 mm

Connections Connections: 4 x internal thread G 1/2 and 2 x external thread G 3/4 bottom centre Maximal positive operating pressure Max. positive operating pressure: 10 bar
Test positive pressure Test positive pressure: 13 bar Maximal operating temperature Max. operating temperature: 110 °C

Technical information

The T6-PLAN CENTRALLY CONNECTED RADIATOR is - with its welded in set of T-shaped valves - suitable for double-pipe installations as well as single-pipeinstallations, using a single-pipe manifold. Additionally to the central connection from the bottom, the sophisticated design makes possible other connections used at compact radiators, such as the single-sided and two-sided connection.

Radiators are delivered ready for double-pipe installation and with a factory-adjusted kv-setting, appropriate to the radiator output.

For district heating installations with a big difference between water supply and return temperature, a valve unit that allows a precise and stepless adjustment is available on request.

Connection modes - double-pipe system

T6 PLAN connection modes

Flow Flow Vent plug Vent plug
Return Return Drain plug Drain plug
Blank plug Blank plug

Caution:
When using the T6-PLAN CENTRALLY CONNECTED RADIATOR as a compact radiator, the 3/4“ screwing caps made of plastic have to be replaced by nickel-plated brass caps (accessory). Available under the item number: AZ0PL000C0002000. Additionally the plastic part of the special vent plug has to be removed.

kv-value chart

kv-value chart

Of course it is also possible to change the pre-adjusted valve setting when the equipment is operating at pressure.

Double-pipe operation - Adjustment tips for built-in valve



T6 double-pipe adjustment tips Setting instructions:
VOGEL&NOOT valve radiators are factory-fitted for double-pipe installations. Each individual radiator is fitted with a pre-adjusted valve insert, appropriate to the radiator output. The preset kv-value is also marked in colour on the front surface.

Please note:
Should customised adjustments be required, the pre-set kv-values can be altered as needed. Swapping the right-hand side built-in valve to the left-hand side is no problem at all at any time. Radiator are delivered with protective caps. After removing the protective cap (pos. A) the following thermostat heads can be fitted directly to the builtin valve (pos. B): “RA 2000”, “RAW” by Danfoss, “VK” by Heimeier, “D” by Herz, “thera DA” by MNG and “UNI XD” by Oventrop.

Single-pipe operation - Factory-adjusted built-in valve

T6 single-pipe built-in valve

1 - water supply element
2 - return element
3 - union nut
4 - cover for throttle screw
5 - ball valve 6 - external thread 3/4''

In single-pipe operation, setting the built-in valve on N.

The radiator will be delivered with a protective cap. After removing the protective cap (item A) the following thermostat heads can be installed directly onto the built-in valve (item B): „RA 2000“ and „RAW“ by Danfoss, „VK“ by Heimeier, „theraDA“ by MNG, as well as „UNI XD“ by Oventrop.

Caution: During the installation take care that the return element (2) has been installed at the water return, and the supply element (1) at the water supply.

Changing the built-in valve from the right- to the left-hand side can easily be done at any time.
