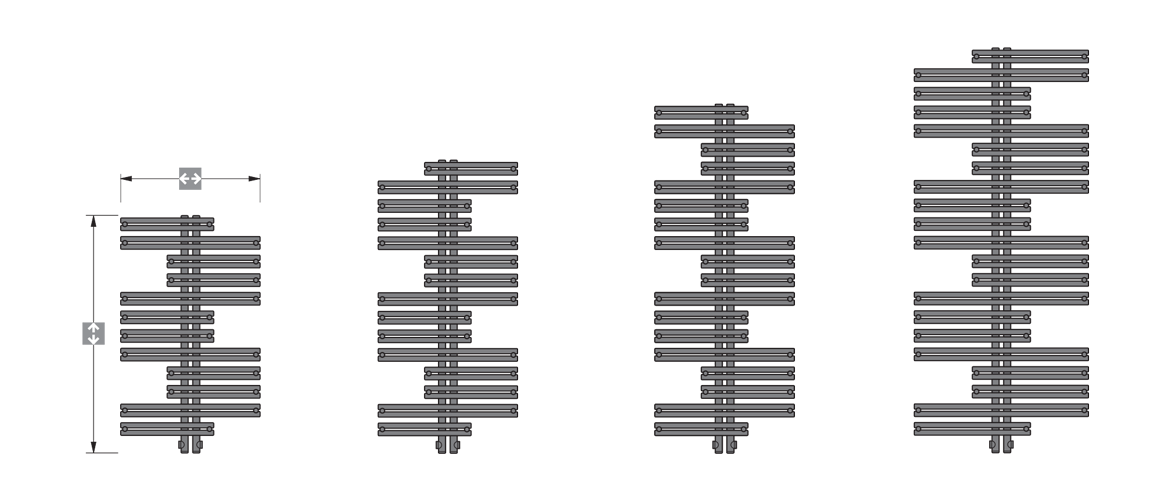

Overview of models

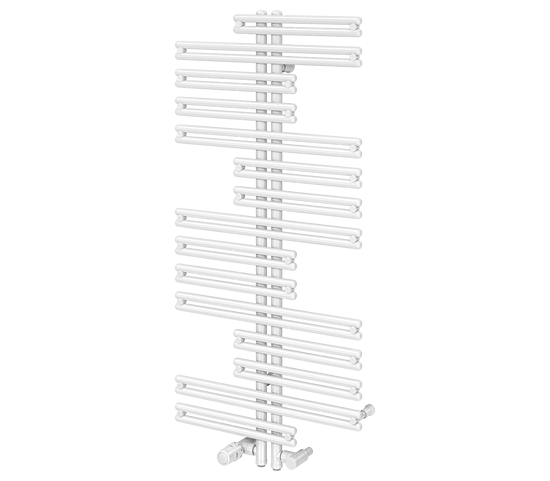

These high quality design radiators are made in Austria. The design radiators manufactured by VOGEL&NOOT meet numerous internationally recognised quality standards and the manufacturing processes at all of the production sites have been ISO certified.

Dimensions and models:

Lenght	600	600, 750	600, 750, 900	750, 900
Height	1022	1262	1502	1742

Connections: 4 x internal thread G 1/2 and 1 x internal thread G 1/4 (for vent plug)

Test overpressure: 13 bar

Max. positive operating pressure: 10 bar

Max. operating temperature: 110 °C

Technical information

Get an overview of the most important technical data. For further information, please download the featured pdf files.

Downloads

Here you can download all relevant data in different file formats.

Colours

This design radiator is available in 71 different colours.

Accessories

Basic standard accessories (included):
• a pivotable vent plug, G 1/4 and two dummy plugs, G 1/2, nickel-plated brass, self-sealing
• a wall mounting set matching the radiator colour
• fitting aid
• instruction sheet

Get an overview of our wide range of accessories for our design radiators.

CE Marking and Declaration of Performance (DoP)

The European Union Construction Products Regulation requires that building products, including the radiators and the convectors without an integrated heat source, must be CE-marked in accordance with relevant harmonized product standards EN 442 and the Declaration of Performance (DoP). The CE marking means that each product meets the manufacturing process requirements of the product according to the provisions of manufacture, testing and delivery. The regulation came into force on July 1st, 2013.

Rettig ICC products are CE-marked and the Declaration of Performance of Rettig ICC and its reference documents, Annexes D and Annexes M describing the detailed performance of the products, are available according to the Construction Products Regulation.  See the current DoP of RICC attached and the linked document files.
