FMK

Noiseless operation due to natural convection (no fan).

The convection plates increase the heating performance.
Heat-Output-Calculator
Brochure

Designs

Different materials and colours lead to numerous scopes of design. Varying frames are used to conceal the transition between the convector tray and the prepared floor.Watch the samples below.

Roll-up grilles and rigid linear grilles

Roll-up grille wood

Rigid linear grille

Wood

Beech nature

Beech nature

Beech lacquered

Beech lacquered

Oak natural

Oak natural

Oak lacquered

Oak lacquered

The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons. Subject to technical changes.

Anodised aluminium

Alu nature

Alu nature

Alu Black

Alu black

Alu Bronze dark

Alu bronze dark

Alu Bronze light

Alu bronze light

The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons. Subject to technical changes.

Stainless steel

Stainless steel

Stainless steel

The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons. Subject to technical changes.

U-frames

U-Frames

U-frames are available in the same colour shades as the aluminium grilles.

L-frames

L-Frame

L-frames are available in the same colour shades as the aluminium grilles.

Z-frames

Z-Frame

Z-frames are only available in the colour shade “natural aluminium”.

Technical information

The underfloor convectors by VOGEL&NOOT meet numerous internationally recognised quality standards.

Quality Marks

Varying dimensions and different designs lead to a wide range of models, suitable for different requiremets.

System design

System design

 test positive pressure
  Test positive pressure: 13 bar

maximum operating pressure

  Max. positive operating pressure: 10 bar

maximum operatingpressure

  Max. operating temperature: 110 °C

Connection examples

INTRATHERM connection examples



Recommended mounting

Recommended mounting

Dimensions at 420 mm width

Dimensions at 420 mm

Dimensions at 340 mm width

Dimensions at 340 mm

Dimensions at 260 and 290 mm width

Dimensions at 260 and 290 mm

Dimensions at 180 mm width

Dimensions at 180 mm

Angled bevel cut examples

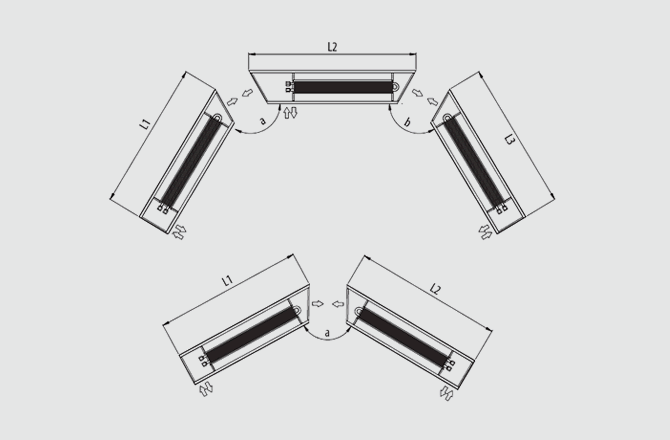

INTRATHERM angled bevel cut

Rectangular bevel cut examples

INTRATHERM rectangular bevel cut

Curved tray

INTRATHERM curved tray

Downloads

Here you can download all relevant data in different file formats.

Control components

For the most efficient operation, we offer a wide range of perfectly matched control components.

Infrared remote control

Infrared remote control / PER-04-DO

LCD ambient temperature controller

LCD ambient temperature controller / PER-03

Room thermostat

Room thermostat / PPT-02

Room thermostat

Room thermostat / PPT-01

Thermal adjusting drive

Thermal adjusting drive / PTP-01

Thermostatic adjusting drive

Thermostatic adjusting drive  / PTH-01

Radiator valves

Radiator valve / PTV-01 / PTV-02

Manual speed switch

Manual speed switch / PSP01


VDI-Dataset

VDI-DATASET

Download our new VDI-Dataset "Radiators and Fanconvectors" from the BDH-Portal.

BDH-Portal

Heat-Output-Calculator

New Heat-Output-Calculator

Try our new Heat-Output-Calculator now!

Try it now
