Horizontal design

Horizontal design

Design and performance as a complete package for elevated requirements.

Also available as a pivoting valve connected radiator through patented fitting clips.
Heat-Output-Calculator
Brochure

Overview of models

The convectors and heating walls manufactured by VOGEL&NOOT meet numerous internationally recognised quality standards and the manufacturing processes at all of the production sites have been ISO certified.

quality marks

Varying dimensions and different designs regarding the number of layers and convection sheets lead to a wide range of models, suitable for different requiremets.

Type VHV

VHV overview of models

VHV 10

 		 VHV overview of models

VHV 20


 VHV overview of models

VHV 22





Model VHV 11 VHV 20 VHV 22
Height  Height 214 286 358 430 142 214  286 358 430 142 214 286 358 430
502 574 646 790 502 574 646 790 - 502 574 646 790 -
Height  Length 500 - 2400 mm
Depth  Depth 68 93 93
Increments 100 mm (for overall lengths of 1400 mm and above: 200 mm)



VHV overview of models

VHV 23

 VHV overview of models

VHV 34
 VHV overview of models

VHV 35

  VHV overview of models

VHV 46





Model VHV 23 VHV 34 VHV 35 VHV 46
Height  Height 142 214 142 214 142 214 142 214
286 - 286 - 286 - 286 -
Height  Length 500 - 2400 mm
Depth Depth 150 175 232 257
Increments 100 mm (for overall lengths of 1400 mm and above: 200 mm)

Connections  Connections: 3 x internal thread G 1/2“, and 2 x external thread G 3/4“, bottom right (by special
  order, bottom left). Types VHV 20, VHV 22, VHV 34, and VHV 46 are reversible and so can be
        connected either at bottom right or at bottom left..

5 bar  Test overpressure (standard design): 5 bar

8 bar  Max. positive operating pressure (high-pressure design): 8 bar

Maximal operating temperature  Max. operating temperature: 110 °C

Type VHV-S

VHV-S overview of models

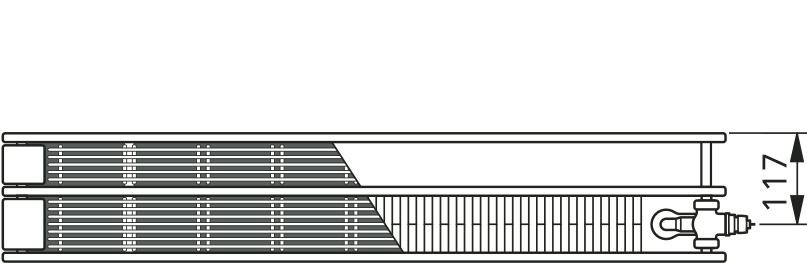

VHV-S 22

 		 VHV-S overview of models

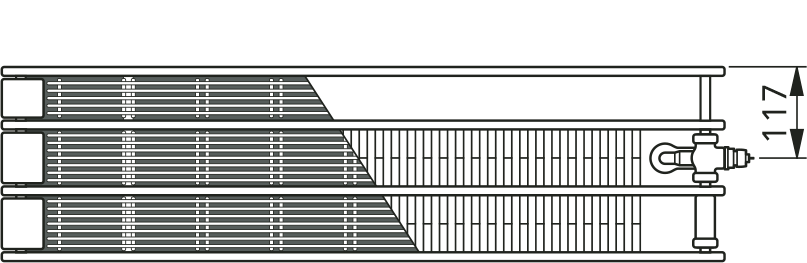

VHV-S 34
 VHV-S overview of models

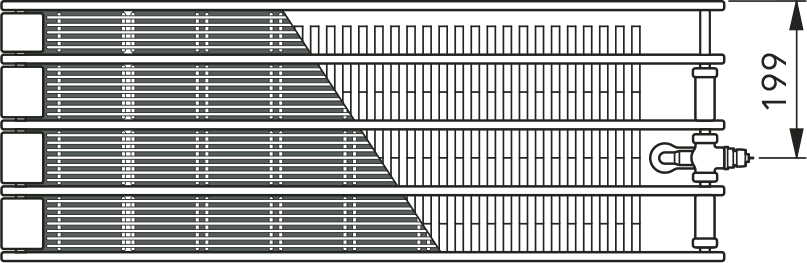

VHV-S 47





Model VHV-S 22 VHV-S 34 VHV-S 47
Height  Height 142 214 286 142 214 286 142 214 286
Height  Length 500 – 2400 mm
Depth  Depth 163 245 327
Increments 100 mm (for an overall length of 1400 mm and above: 200 mm)



Connections  Connections: 3 x internal thread G 1/2“, and 2 x external thread G 3/4“, bottom right (by special
  order, bottom left). Types VHV 20, VHV 22, VHV 34, and VHV 46 are reversible and so can be
        connected either at bottom right or at bottom left.

5 bar  Test overpressure (standard design): 5 bar


8 bar  Max. positive operating pressure (high-pressure design): 8 bar

Maximal operating temperature  Max. operating temperature: 110 °C



Technical information

Get an overview of the most important technical data. For further information, please download the featured pdf files.

Double-pipe operation

It is easy to set the precise values required without using any special tools (see drawings).

VONARIS horizontal



The radiator will be delivered with a fi tted protective cap. After removing the protective cap (item A), the following thermostat heads can be installed directly onto the built-in valve (item B): „RA 2000“, or „RAW“ from Danfoss, „VK“ from Heimeier, „D“ from Herz, „thera DA“ from MNG, and „UNI XD“ from Oventrop.

Adjustment tips:
• Remove protective cap and sensor
• Lift the adjusting ring and turn it anti-clockwise, to the setting required – the set
   value (1, 2, ...7, N) needs to be directly in line with the marker.
• Presetting is possible in steps of 0.5 between 1 and 7. The „N“setting, cancels all presetting.



Single-pipe operation

A valve default setting is not necessary as the valve will be delivered factory-adjusted (default setting N).

VONARIS horizontal



The radiator will be delivered with a fitted protective cap. After removing the protective cap (item A), the following thermostat heads can be installed directly onto the built-in valve (item B): „RA 2000“, or „RAW“ from Danfoss, „VK“ from Heimeier, „D“ from Herz, „thera DA“ from MNG, and „UNI XD“ from Oventrop.

Please note: During the installation of the single-pipe manifold ensure that the return insert ( 2 ) is installed in the water return, and the supply insert ( 1 ) in the water supply.



PDF

Downloads

Here you can download all relevant data in different file formats.

PDF

DXF / DWG

SOFTWARE & TOOLS

Colours

The VONARIS horizontal design is available in 71 different colours.

RAL COLOURS

  • RAL9016 Traffic White
  • RAL 9010 Pure White
  • RAL 9001 Cream White
  • RAL 250-2 Lemon Glow
  • RAL 1023 Traffic Yellow
  • RAL 1012 Lemon Yellow
  • RAL 1004 Golden Yellow
  • RAL 1027 Curry
  • RAL 6034 Pastel Turquoise
  • RAL 5014 Pastel TurquoisePigeon Blue
  • RAL 5009 Azure Blue
  • RAL 5015 Sky Blue
  • RAL 5017 Traffic Blue
  • RAL 5022 Night Blue
  • RAL 5002 Ultramarine Blue
  • RAL 5001 Green Blue
  • RAL 9005 Jet Black
  • RAL 7021 Black Grey
  • RAL 1033 Dahlia Yellow
  • RAL 2003 Pastel Orange
  • RAL 2004 Pure Orange
  • RAL 3000 Flame Red
  • RAL 3005 Wine Red
  • RAL 4002 Red Violet
  • RAL 4007 Purple Violet
  • RAL 4008 Signal Violet
  • RAL 290 70 20 Mauve Haze
  • RAL 290 40 45 Mystic Purple
  • RAL 4009 Pastel Violet
  • RAL 3015 Light Pink
  • RAL 3014 Antique Pink
  • RAL 6019 Pastel Green
  • RAL 120 80 60 Modern green
  • RAL 120 70 70 E-Green
  • RAL 150 60 60 Green Apple
  • RAL 6033 Mint Turquoise
  • RAL 6004 Blue Green
  • RAL 8017 Chocolate Brown
  • RAL 8019 Grey Brown
  • RAL 040 80 05 White Coffee
  • RAL 7035 Light Grey
  • RAL 7040 Window Grey
  • RAL 7001 Silver Grey
  • RAL 7037 Dusty Grey
  • RAL 7030 Stone Grey
  • RAL 7013 Brown Grey
  • RAL 7015 Slate Grey
  • RAL 7016 Anthracite Grey
  • RAL 7024 Graphite Grey
  • RAL 9006 White Aluminium
  • RAL 9007 Grey Aluminium

The colours shown here are not binding. Colour variations are possible due to print-technical reasons. Further colours available on request!

SANITARY COLOURS

  • S0075 Jasmine
  • S0091 Pergamon
  • S0094 Natura
  • S0087 Bahama Beige
  • S0084 Anemone
  • S0077 Magnolia
  • S0164 Banana
  • S0088 Manhatten

The colours shown here are not binding. Colour variations are possible due to print-technical reasons. Further colours available on request!

SPECIAL COLOURS

  • S0145 Creme White
  • S0142 White Textured
  • S0141 Black Textured
  • S0147 Anodic Brown
  • S0148 Anodic Black
  • S0149 Anodic Natura
  • S0201 Metal Alu
  • S0102 Metal Grey
  • S0146 Anodic Bronze
  • S0104 Metal Black
  • S0144 Brown Grey
  • S0143 Light Grey

The colours shown here are not binding. Colour variations are possible due to print-technical reasons. Further colours available on request!

Accessories

Get an overview of our wide range of accessories for our convectors and heating panels.

PDF

CE Marking and Declaration of Performance (DoP)

The European Union Construction Products Regulation requires that building products, including the radiators and the convectors without an integrated heat source, must be CE-marked in accordance with relevant harmonized product standards EN 442 and the Declaration of Performance (DoP). The CE marking means that each product meets the manufacturing process requirements of the product according to the provisions of manufacture, testing and delivery. The regulation came into force on July 1st, 2013.

Rettig ICC products are CE-marked and the Declaration of Performance of Rettig ICC and its reference documents, Annexes D and Annexes M describing the detailed performance of the products, are available according to the Construction Products Regulation.  See the current DoP of RICC attached and the linked document files.

PDF

VDI-Dataset

VDI-DATASET

Download our new VDI-Dataset "Radiators and Fanconvectors" from the BDH-Portal.

BDH-Portal

Heat-Output-Calculator

New Heat-Output-Calculator

Try our new Heat-Output-Calculator now!

Try it now

Modernisation

In Europe, more than 40% of the CO2 emissions are caused by buildings. To update the whole heating system is one of the most important measures, to protect our environment sustainable.

cf. Prof. Rainer Hirschberg , VDI Nachrichten, Aachen 2006

Spotlights

  • Added value with modern low-temperature radiators [Many benefits with panel radiators]

    • Compatibility Compatible with all energy sources:

      • Range of supply temperatures from between 90 ° and less than 40 °C

      • Perfect for the combination with low-temperature heat sources (heat pump, solar energy …)

      Savings Enormous potential for cost reduction with new buildings & renovations:

      • Approx. 15 % less energy costs with replacement radiators (as comp. with old element radiators)

      • Thanks to high performance, only low system temperatures are required

      Fast control Extremely fast control in the heating-up and cooling time

      • Fast reaction time after sudden temperature changes (less energy)

      • High efficiency due to short cooling & heating-up times • Control is of very good quality

  • Respectarea standardelor de protectia mediului [41% din emisiile de CO2 sunt determinate de cladiri]

    • In intreaga lume, sunt luate masuri pentru economisirea energiei si conservarea resurselor planetei. VOGEL&NOOT sustine aceste eforturi cu radiatoare de inalta tehnologie si sisteme de incalzire prin pardoseala care asigura randament termic sporit si confort termic optim protejand totodata mediul inconjurator.

  • Meeting the increased environmental awareness [41% of the CO2 emissions are caused by buildings]

    • Throughout the world, efforts are being made to save energy and conserve our planet’s resources. VOGEL&NOOT is supporting these efforts with high-tech radiators and underfloor heating systems in order to permit efficient heat output in conditions of complete comfort.
