SEWA

SEWA

Create your individual design radiator with more than 1.000 options.
Brochure Output calculator

Colours and decors

The VOGEL&NOOT design radiator models SEWA and NERO can be individually structured with their flexible surfaces concept and open up over a thousand possibilities.

The variable surfaces create harmony and provide living spaces with an atmosphere that is both comfortable and refined – including an unmistakable touch of luxury.

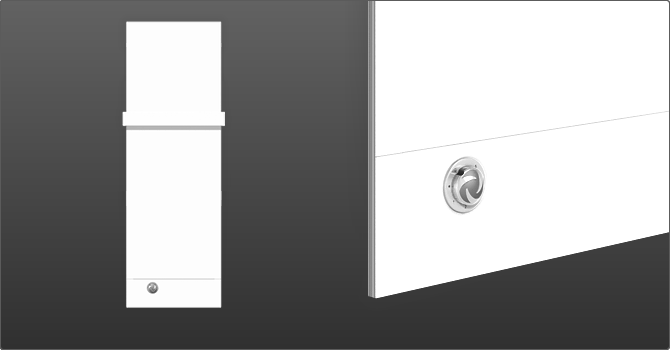

standard

Form follows function - the wide towel racks underline the claim to functional independence. Classic white for a timeless design.





The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons. Additional colours are available on request!

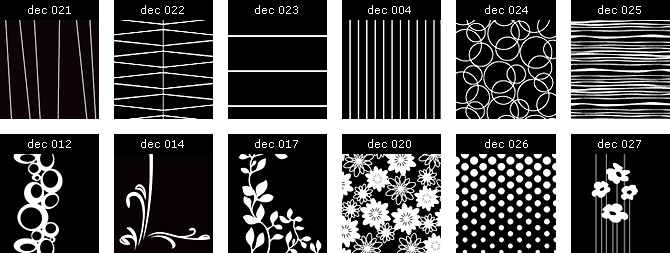

SEWA decor - 12 decorative patterns in dark colour shades

 Choose from 45 different colours.

The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons. Additional colours are available on request!

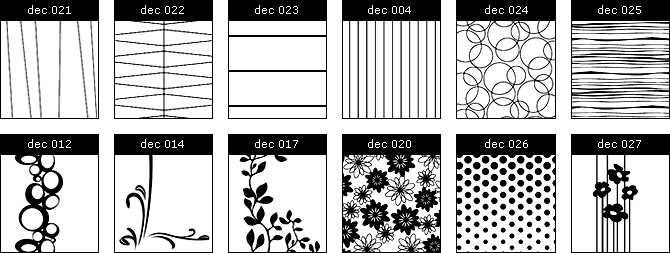

SEWA decor - 12 decorative patterns in light colour shades

 Choose from 45 different colours.

The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons. Additional colours are available on request!

Choose from 71 different colours. The colourful range of these models allows for an imaginative interplay of glowing colours with living space and architecture.

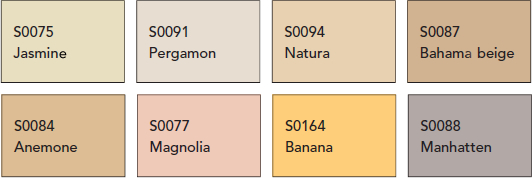

Sanitary colours

Sanitary colours

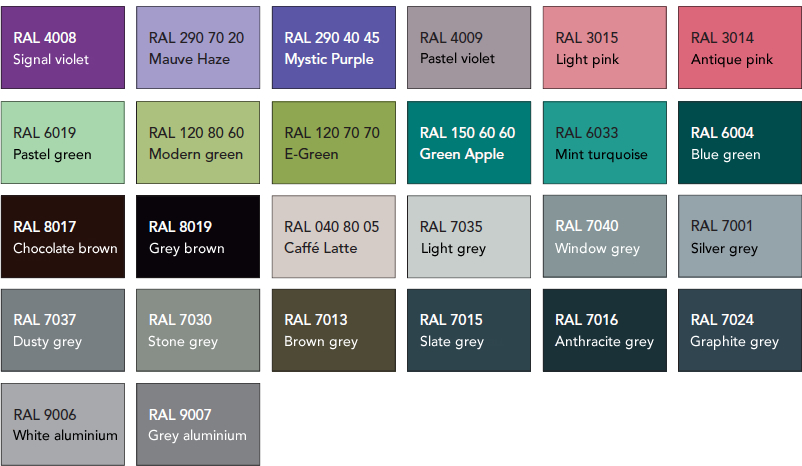

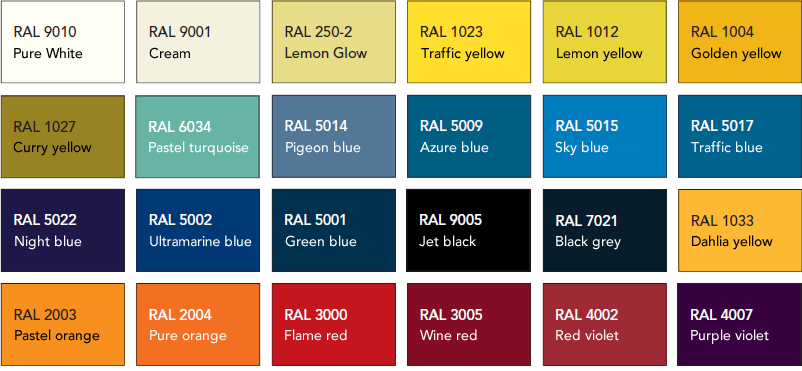

RAL colours

Design radiators - RAL coloursDesign radiators - RAL colours

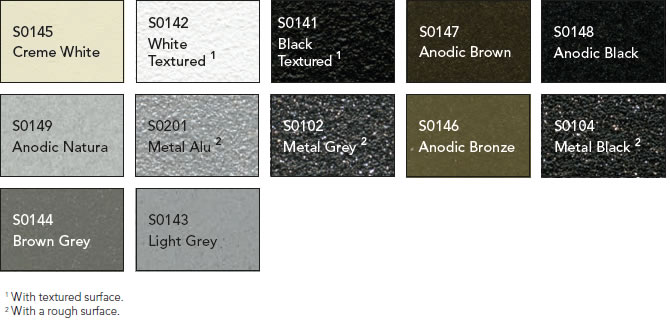

Special colours

Panel radiators - special colours

Overview of models

These high quality design radiators are made in Austria. The design radiators manufactured by VOGEL&NOOT meet numerous internationally recognised quality standards and the manufacturing processes at all of the production sites have been ISO certified.

Quality marks design radiators

Dimensions and models:

SEWA - New Design Collection

 Witdh  Length 600 600 700
 Height  Height 1471 1685 1685
 Depth  Depth 90

Technical information

Get an overview of the most important technical data. For further information, please download the featured pdf files.

Connection examples

Sewa_connection_examples

Connections Connections: 2 x external thread G ¾” (valve connection set)

operating pressure Maximum permissible operating pressure: 5 bar

operating pressure Maximum operating temperature: 110 °C

flow Flow

Return Return

Vent plug Vent plug

Electric connection Electric connection

Accessory: electric heat element G 3/8
SEWA Design radiators equipped with an electric heating element can also be used at times when the regular heating system is switched off.

It is absolutely necessary to take account of the power-ratings assigned to the electric heating elements.

Basic standard accessories (included):
• 2 towel rails (overall height 1500 mm), or 3 towel rails (overall height 1700 mm)
• an integrated valve connection set incl. thermostat head
• a pivotable vent plug, G ¼, and
• a dummy plug, G 3/8, nickel-plated brass, self-sealing, factory-sealed
• a wall mounting set with spacers
• 2 mounting brackets, alternatively: 2 extensions
• instruction sheet

Dimensions [mm]

Sewa_vertical_dimensions



Accessories

Basic standard accessories (included):
• 2 towel rails (overall height 1500 mm), or 3 towel rails (overall height 1700 mm)
• an integrated valve connection set incl. thermostat head
• a pivotable vent plug, G ¼, and
• a dummy plug, G 3/8, nickel-plated brass, self-sealing, factory-sealed
• a wall mounting set with spacers
• 2 mounting brackets, alternatively: 2 extensions
• instruction sheet

Get an overview of our wide range of accessories for our design radiators.

PDF

CE Marking and Declaration of Performance (DoP)

The European Union Construction Products Regulation requires that building products, including the radiators and the convectors without an integrated heat source, must be CE-marked in accordance with relevant harmonized product standards EN 442 and the Declaration of Performance (DoP). The CE marking means that each product meets the manufacturing process requirements of the product according to the provisions of manufacture, testing and delivery. The regulation came into force on July 1st, 2013.

Rettig ICC products are CE-marked and the Declaration of Performance of Rettig ICC and its reference documents, Annexes D and Annexes M describing the detailed performance of the products, are available according to the Construction Products Regulation.  See the current DoP of RICC attached and the linked document files.

PDF
