High performance, rapid room heating and even heat distribution.
Technical Guide Brochure

Overview of models

The radiators manufactured by VOGEL&NOOT meet numerous internationally recognised quality standards and the manufacturing processes at all of the production sites have been ISO certified. Furthermore, the quality and performance data of VOGEL&NOOT panel radiators are constantly reviewed and confirmed by accredited European institutions.

Quality as a sign of maximum safety


Varying dimensions and different designs regarding the number of layers and convection sheets lead to a wide range of models, suitable for different requiremets.

Type K1SPG

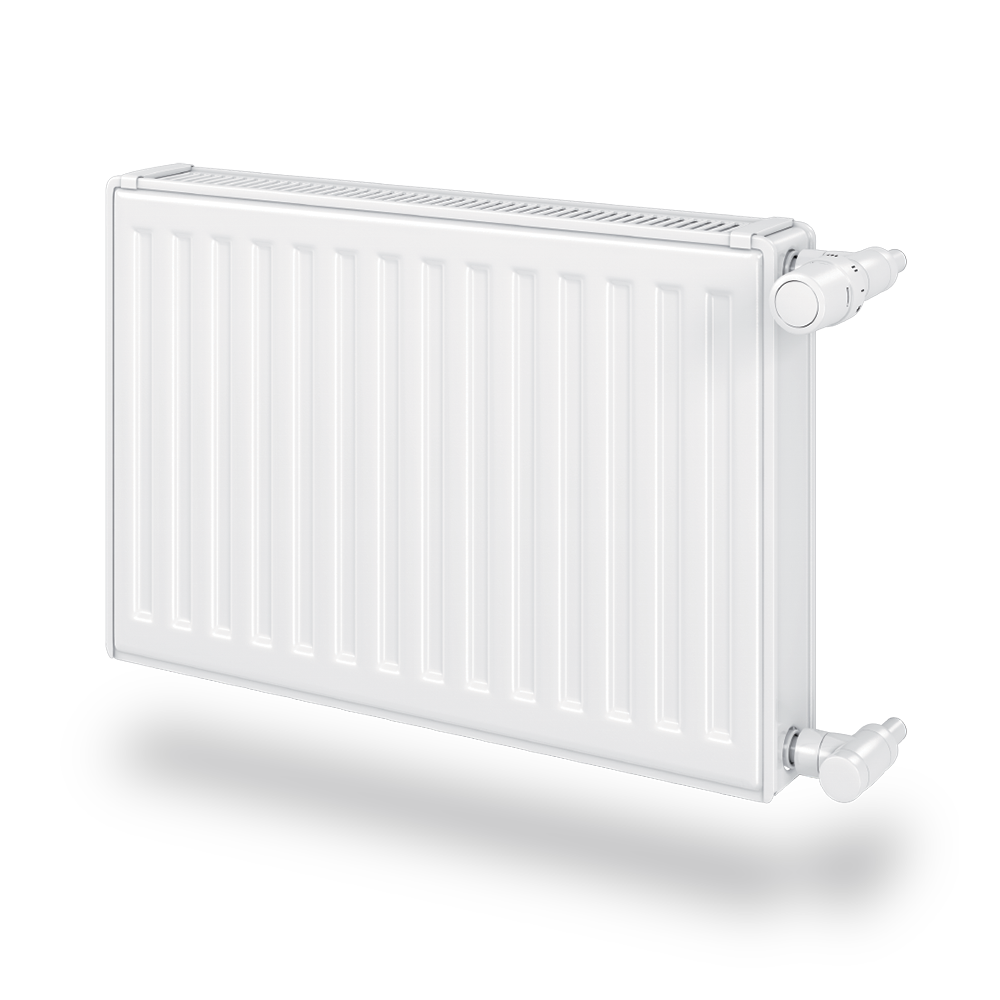

Compact radiator TYPE 11 K

Type K1SPG

 Compact radiator TYPE 11 K

Type K1SPG
single-layer with one convection sheet
Height Height 300 400 500 600 750
Width Length up to 2000 up to 2600  up to 2600 up to 2000
Depth Depth 61

Connections  Connections: 4 x internal thread G 1/2

Test positive pressure  Test positive pressure: 13 bar

Maximal positive operating pressure  Max. positive operating pressure: 10 bar

Maximal operating temperature  Max. operating temperature: 110 °C

Type P+

Compact radiator TYPE 21 K-S

Type P+

 Compact radiator TYPE 21 K-S

Type P+
double-layer with one convection sheet
Height Height 300  500 600  750
Width Length  up to 2000  up to 2200  up to 2000
Depth Depth 80

Connections  Connections: 4 x internal thread G 1/2

Test positive pressure  Test positive pressure: 13 bar

Maximal positive operating pressure  Max. positive operating pressure: 10 bar

Maximal operating temperature  Max. operating temperature: 110 °C

Type K2

Compact radiator TYPE 22 K

Type K2

 Compact radiator TYPE 22 K

Type K2

double-layer with two convection sheets
Height Height 300 400 500 600 750
Width Length up to 3000 up to 2000  up to 2600  up to 2000
Depth Depth 105

Connections  Connections: 4 x internal thread G 1/2

Test positive pressure  Test positive pressure: 13 bar

Maximal positive operating pressure  Max. positive operating pressure: 10 bar

Maximal operating temperature  Max. operating temperature: 110 °C

Technical information

Compact radiators can easily be converted for a single-pipe connection, provided that four-way valves with a by-pass pipe are used.

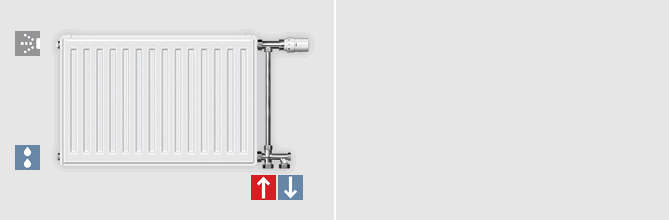

Connection details - single-pipe system

Compact radiator single-pipe connection



Flow  Flow

Return  Return

Blank plug  Blank plug

Vent plug  Vent plug

Drain plug  Drain plug

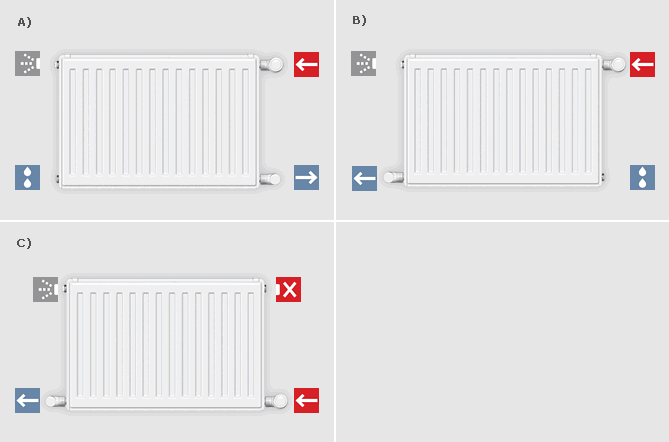

Connection details - double-pipe system

A) Single-sided connection
B) Connection both sides
C) Connection on top (Warning: Lower performance)

Compact radiator double-pipe connection



Flow  Flow

Return  Return

Blank plug  Blank plug

Vent plug  Vent plug

Drain plug  Drain plug

Colours

Our VIENNALINE radiators are available in 72 different colours.
Please note: These colour options are to order only - approximately 6-8 week delivery time.

21 Sanitary colours

color name color code
Compact radiators



The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons. Additional colours are available on request!

42 Standard colours

color name color code
Compact radiator



The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons.Additional colours are available on request!

9 Metallic colours

color name color code
compact radiator


The colours shown here are not binding. Chromatic aberrations are possible due to technical reasons.Additional colours are available on request!

Dr. Michael Graf

“We have created various replacement scenarios in which a radiator replacement is carried out. With VOGEL&NOOT panel radiators, an average saving of approximately 15 % was recorded.”

DI Dr. Michael Graf  is professor on the renowned technical college in Pinkafeld, Austria.

Spotlights

  • Added value with modern low-temperature radiators [Many benefits with panel radiators]
    • CompatibilityCompatible with all energy sources:
      • Range of supply temperatures from between 90 ° and less than 40 °C
      • Perfect for the combination with low-temperature heat sources (heat pump, solar energy …)





      SavingsEnormous potential for cost reduction with new buildings & renovations:
      • Approx. 15 % less energy costs with replacement radiators
         (as comp. with old element radiators)
      • Thanks to high performance, only low system temperatures are required



      Fast controlExtremely fast control in the heating-up and cooling time
      • Fast reaction time after sudden temperature changes (less energy)
      • High efficiency due to short cooling & heating-up times
      • Control is of very good quality



  • Meeting the increased environmental awareness [41% of the CO2 emissions are caused by buildings]
    • Throughout the world, efforts are being made to save energy and conserve our planet’s resources. VOGEL&NOOT is supporting these efforts with high-tech radiators and underfloor heating systems in order to permit efficient heat output in conditions of complete comfort.
